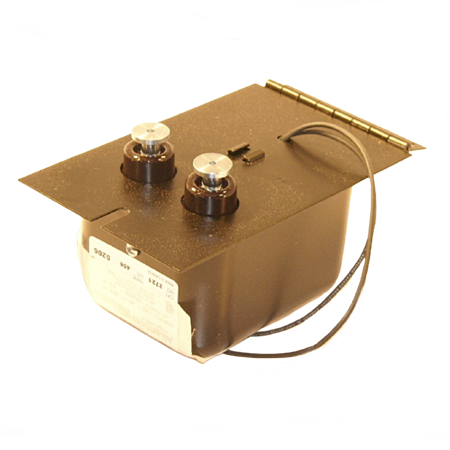

The Allanson 2721-456 Ignition Transformer is designed for use with burners. The transformer has an input supply voltage of 120V and 60Hz frequency. Also, the loading air gap ranges from 1/8" to 3/16".

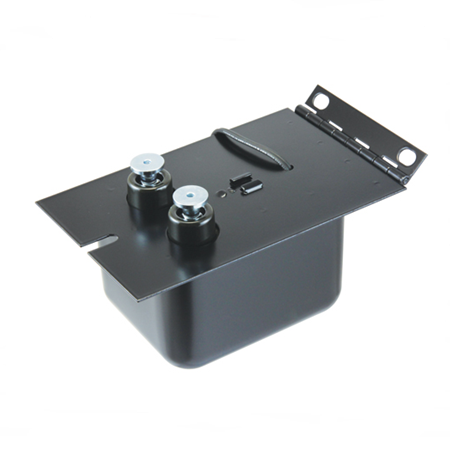

Allanson Production Transformers do offer two sizes, the standard size Series 421 and the small can Series 2721. They operate quietly and safely on any kind of burner and suitable for use with Aero burners.
The 2721-456 Transformer replaces Webster 313-24ABAER and France 5LAY-56.
|Input Supply Voltage||120V|
|Input Supply Frequency||60Hz|
|Primary Voltage - Amperes||250VA|
|Secondary Voltage||10,000 RMS|
|Secondary Short Circuit Current||23mA|
|Operating Temperature||-30 to +40C|
|Operating Relative Humidity||90%|
|Loading Air Gap||1/8" - 3/16"|
|HV Terminal||Zinc Plated Button|
|Hinge Location||End Hinge|
Download Product Information:
Allanson Ferromagnetic Transformers Technical Datasheet
Yes, I would recommend this product to a friend or co-worker
Identical to the one that was on furnace. Fit right on no problem
