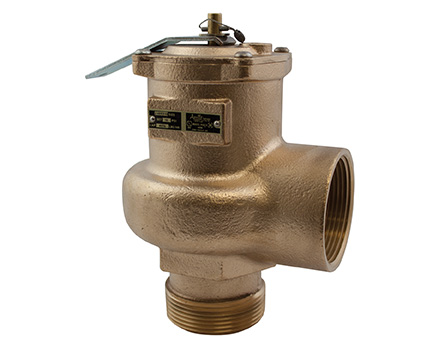

Conbraco 14-205-08 High Volume Safety Relief Valve 2" Male x Female ASME Section IV Steam

Conbraco 14-205-08 High Volume Safety Relief Valve 2" Male x Female ASME Section IV Steam
Images for general purposes only. Actual may be different than depicted.
Conbraco 14-205-08 High Volume Safety Relief Valve 2" Male x Female ASME Section IV Steam

Conbraco 14-205-08 High Volume Safety Relief Valve 2" Male x Female ASME Section IV Steam

SKU: 14-205-08
In Stock 16
Rating:
$339.42 /ea
0
$0.00
0
$0.00
0
Applications:
The 14 Series is an ASME Section IV high capacity steam safety valve for use with
medium and large size commercial and industrial heating boilers.

Features
• One piece body, all bronze construction
• Rust proofed steel spring
• Chrome plated seat, PTFE coated disc
• PTFE coated EPDM O-ring for positive seal
• 3/8" NPT side tapping for drain connection
• Valves are capacity certified by the National Board at 15 psig only, in accordance with
ASME Boiler and Pressure Vessel Code Section IV
• Registered in all Canadian provinces and territories, CRN #0G8547.5C

Options
• Test gag available to prevent the valve from opening during hydrostatic testing of the
boiler. To specify gag option, add “G” to suffix.

Following are the Attached files for this product:

Tech Sheet
