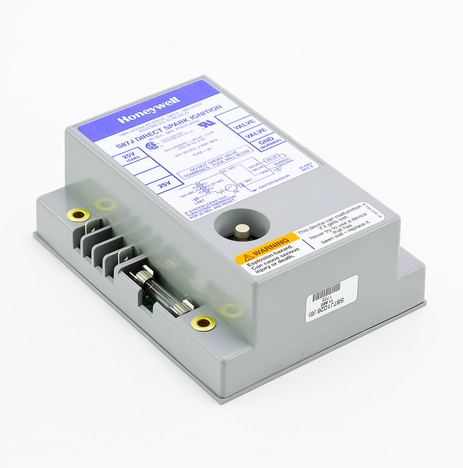

Honeywell S87J1026 Direct Spark Ignition Module 24V

Honeywell S87J1026 Direct Spark Ignition Module 24V
Images for general purposes only. Actual may be different than depicted.
Honeywell S87J1026 Direct Spark Ignition Module 24V

Honeywell S87J1026 Direct Spark Ignition Module 24V

SKU: S87J1026
In Stock 15
Rating:
$298.74 /ea
Qty of 5 - $289.42 /ea
Qty of 10 - $280.10 /ea
0
$0.00
0
$0.00
0

Honeywell Series S87 Ignition Module

The S87 is a low voltage solid state direct spark ignition control module for gas-fired furnaces boilers and heating appliances. Models are available with or without a prepurge timer. The S87 controls the gas valve monitors the main burner flame and generates a high voltage for spark ignition. The S87J uses a single electrode for spark ignition and flame sensing. Use with any gas control designed for DSI application that is rated at 2.0A or less. Includes a 30 second (minimum) delay for use with system prepurge. The S87J1026 is designed for Natural gas or Liquid Propane and has an internal high voltage spark generator.

Features:

  • External replaceable fuse protects system transformer and temperature controller.
  • Automatic system lockout after trial-for-ignition if malfunction exists or main burner flame fails to ignite.
  • Compact solid state components for accurate long-lasting performance.
  • Convenient remote start procedure after safety shutdown control module can be reset from the remperature controller.
  • Low voltage control circuit reduces wiring costs.
  • Uses flame rectification principle to prove presence of main burner flame false flame signal resulting from short to ground results in safety shutdown.
Flame Failure Response Time 0.8 seconds
Flame Failure Re-ignition Time 0.8 seconds
Ignition Trial Time 11-seconds
Trial to Lockout Time 1-second
Pre-purge Time 30-second minimum
