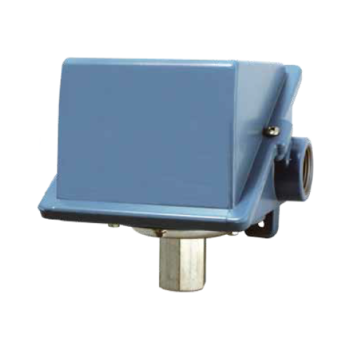

United Electric J402K-157 Pressure Switch 10-100 PSI 2-SPDT NEMA 4X

United Electric J402K-157  Pressure Switch 10-100 PSI 2-SPDT NEMA 4X
Images for general purposes only. Actual may be different than depicted.
United Electric J402K-157  Pressure Switch 10-100 PSI 2-SPDT NEMA 4X

United Electric J402K-157 Pressure Switch 10-100 PSI 2-SPDT NEMA 4X

SKU: J402K-157
Rating:
Quantity Price Stock
Usually ships 1-2 weeks
Usually ships 1-2 weeks
$1,006.62     /ea
Usually ships 1-2 weeks
0
$0.00
0
$0.00
0
J402K-157
United Electric 400 Series Pressure Switch

The 400 Series is a versatile family of vacuum, pressure, differential pressure and temperature switches for applications that require single or multiple switching capabilities. Dual and triple switch versions provide multi-output for alarm and shutdown, pre-alarm and alarm, high/low limit or level staging functions.   A wide variety of microswitch and process connection options, along with a weather-tight enclosure, make the 400 Series an ideal choice for most ordinary location applications. Its worldwide use is assured with approvals and certifications to agency standards.   Widely used throughout the process industries, the 400 Series provides threshold protection and control for many critical functions. Typical installations are found in industrial gas production, energy generation including pumps, turbines and compressors, pulp and paper, and water and wastewater treatment.

Features:
  • 1, 2 & 3 Switch Output
  • Epoxy Coated Enclosure designed to meet enclosure type 4X
  • Wide variety of pressure sensors and materials
  • Setting via reference dial or hex screw adjustment
  • FM approved
  • Adjustable Ranges
Storage Temperature -65 to 160°F (-54 to 71°C)
Ambient Temperature Limits -40 to 160°F (-40 to 71°C); set point typically shifts less than 1% of range for a 50°F (28°C) ambient temperature change
Set Point Repeatability Temperature models: ± 2% of adjustable range; Pressure models: ± 2% of adjustable range
Shock Set point repeats after 15 G, 10 millisecond duration
Vibration Set point repeats after 2.5 G, 5-500 Hz
Enclosure Die cast aluminum, epoxy powder coated, gasketed, captive cover screws; Designed to meet enclosure type 4X requirements
Electrical Rating 15 A 125/250/480 VAC resistive. Electrical switches have limited DC capabilities.
Electrical Connection One 3/4” NPT and two 7/8” diameter knockouts
